TL;DR:
- Tight tolerance machining requires controlling process variables, tooling, and environment for dimensional accuracy. Proper machine warm-up, precise tooling, and calibrated gauges help prevent errors and ensure consistency. Applying strict tolerances only where function demands minimizes costs and production time.
Tight tolerance machining is the practice of holding dimensional accuracy to within ±0.0005" or better on critical part features, where deviation directly affects function, fit, or safety. Standards from ASME Y14.5 and ISO 286 define the tolerance grades that govern these requirements across aerospace, defense, and industrial applications. The gap between a part that works and one that fails often comes down to a few ten-thousandths of an inch. Machiningtechllc has produced over 20 million parts annually from its Webster, Massachusetts facility, and the lessons from that volume are clear: precision is a system, not a single step. These tight tolerance machining tips address every layer of that system.

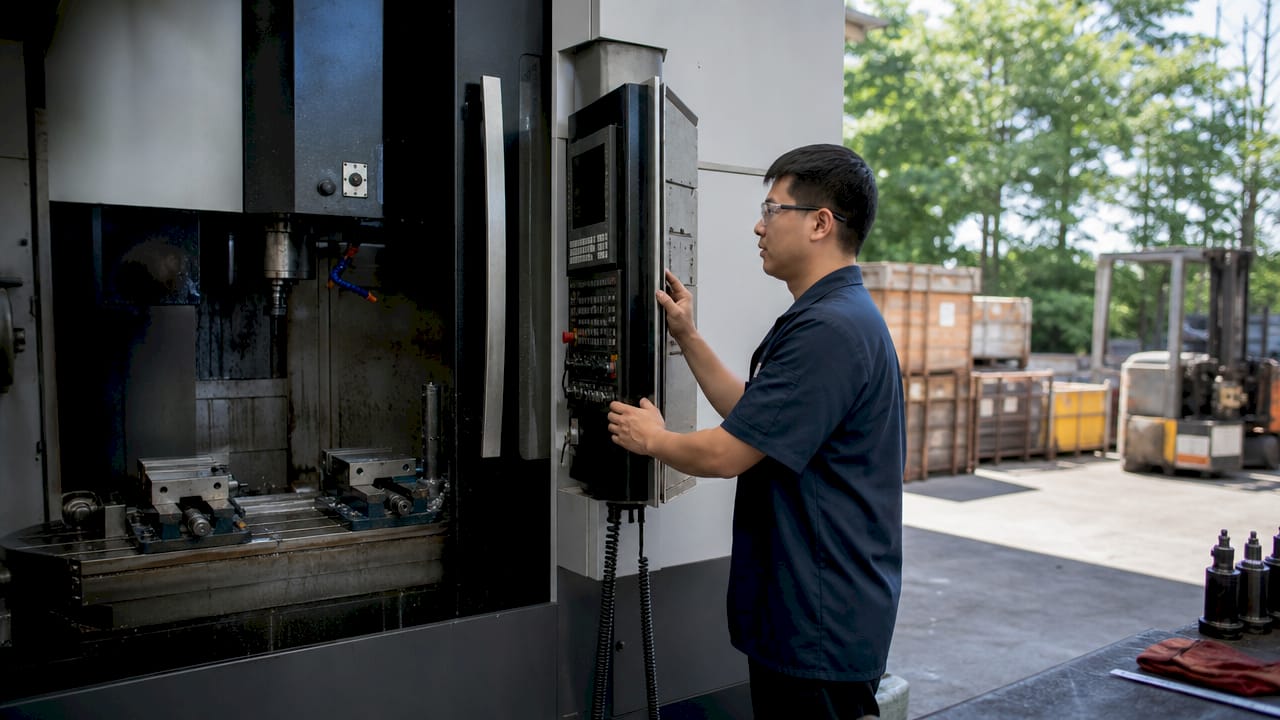

1. Warm up your CNC machine before cutting
Thermal expansion is one of the most underestimated sources of dimensional error in precision machining. Metal machine components expand as they heat up, and that expansion shifts the relationship between the spindle, the tool, and the workpiece by measurable amounts.
Warming up CNC machines for 10–15 minutes before cutting significantly improves dimensional stability. That window lets the spindle bearings, ballscrews, and casting reach a stable operating temperature before any critical cuts begin.
A proper warm-up routine includes:
- Running the spindle at operating speed with no load
- Cycling the axes through their full travel range
- Monitoring spindle temperature if your machine supports it
- Cutting a test piece and measuring before starting a production run
Pro Tip: Build warm-up cycles into your CNC program as a dedicated subroutine. This removes the human variable and guarantees the machine runs the routine every shift, regardless of who is operating it.

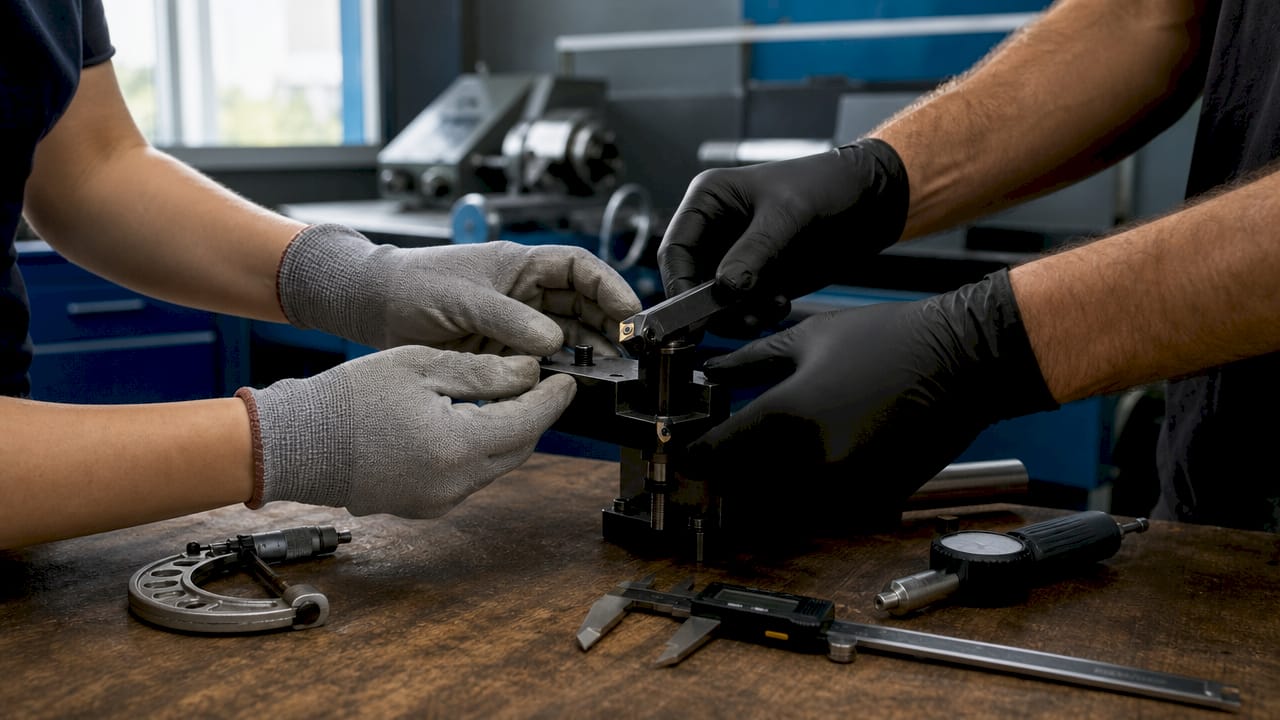

2. Select and maintain tooling with precision in mind
Quality cutting tools matched to the workpiece material are the foundation of accurate cuts. A worn or mismatched tool does not just reduce surface finish. It changes the actual dimension of the cut as the edge deflects under load.
Tool runout is a specific threat to tight tolerance work. Even 0.0002" of runout at the cutting edge translates directly into dimensional variation on the part. Shrink-fit toolholders and hydraulic chucks reduce runout far more effectively than standard collet chucks for this class of work.
Key tooling practices for precision machining:
- Use sharp, high-quality carbide or coated tooling rated for your material
- Measure runout at the tool tip with a dial indicator before each setup
- Set conservative feed rates to reduce deflection on finishing passes
- Replace tools on a scheduled interval, not just when they visibly fail
Slower feed rates and sharp tools reduce dimensional errors but increase cycle time. That tradeoff is real, and you need to account for it in your quoting and scheduling.
Pro Tip: Track tool life by part count or cutting time, not by feel. Log the data for three to five tool changes, then set your replacement interval at 80% of the average failure point. This prevents drift before it reaches your tolerance band.
3. Apply tight tolerances only where function demands it
Unnecessary tight tolerances drive up machining time, inspection overhead, and scrap rates without improving product performance. The “just to be safe” mentality is one of the most common and costly mistakes on engineering drawings.
The correct approach is to identify which features are truly functional. A bore that receives a press-fit bearing needs a tight tolerance. A clearance hole for a fastener does not. Applying the same tolerance class to both wastes shop time and money.
Follow this sequence when specifying tolerances on a new design:
- List every feature on the part and its functional role in the assembly.
- Identify which features directly control fit, motion, or load transfer.
- Apply tight tolerances only to those features.
- Use standard tolerances (ISO 2768 medium or ASME general tolerances) for all non-critical features.
- Add a note on the drawing that flags the critical dimensions for the machinist.
Stack-up analysis is the most reliable method for determining what each feature actually needs. Worst-case and statistical stack-ups tell you whether your tolerance allocation is achievable and whether it will produce a working assembly. Use it before the drawing is released, not after the first article fails.
You can find detailed guidance on specifying machining tolerances based on functional requirements and manufacturing capability.
4. Calibrate machines and gauges on a defined schedule
Regular calibration of CNC machines, inspection gauges, and fixtures is the single most reliable way to prevent tolerance drift over time. Machines that are not calibrated regularly will produce parts that are consistently off, and the error will be invisible until a customer rejects a shipment.
Calibration is not just about the machine. Every gauge you use to verify a part, from micrometers to air gauges to CMM probes, needs a traceable calibration record. An uncalibrated gauge gives you false confidence.
A practical calibration program covers:
- CNC machine geometry checks (squareness, straightness, backlash) on a quarterly or semi-annual schedule
- Gauge calibration tied to NIST-traceable standards
- Fixture inspection to verify locating surfaces have not worn or shifted
- Documentation of all calibration results with pass/fail records
Statistical process control (SPC) adds another layer of protection. Tracking key dimensions across a production run lets you see when a process is drifting toward the tolerance limit before it crosses it. This is the difference between catching a problem at the machine and catching it in the inspection room.
5. Control your shop environment
Temperature variation and vibration directly affect machining accuracy. A shop floor that swings 15°F between morning and afternoon will produce parts that measure differently at each end of the shift, even with the same program and the same operator.
The standard reference temperature for dimensional measurement is 68°F (20°C) per ISO 1 and ASME B89.6.2. Parts measured at a different temperature will read differently than they will at the reference condition. For tolerances tighter than ±0.001", temperature control is not optional.
Practical environmental controls include:
- Climate control in the machining area, or at minimum in the inspection area
- Isolating precision machines from sources of floor vibration such as presses or heavy material handling equipment
- Allowing parts to thermally stabilize before final inspection
- Using temperature-compensating CMMs for critical measurement work
6. Design fixtures for stability and repeatability
Fixtures and clamping methods have a direct impact on whether a part holds its position during cutting. A part that moves even slightly under cutting forces will produce a feature that is out of location, out of round, or out of size.
Good fixture design follows the 3-2-1 locating principle: three points define a plane, two points define a line, and one point defines position. This eliminates all six degrees of freedom without over-constraining the part. Over-constraining a part distorts it under clamping load, which means the part springs back to a different shape when you unclamp it.
Clamping force matters as much as clamping location. Too much force deforms thin-walled parts. Too little allows chatter. The right answer comes from testing, not guessing. Document the fixture setup, including torque values for clamping screws, so every operator reproduces the same condition.
7. Use wire EDM for features that exceed conventional limits
Wire EDM removes material through electrical discharge rather than cutting force. That means zero cutting force on the part, which eliminates deflection as a source of error entirely. For features like narrow slots, small-radius internal corners, or hardened steel components, wire EDM advantages include tolerances that conventional milling and turning cannot reliably hold.
Machiningtechllc operates wire EDM equipment as part of its precision machining capability. This makes it possible to hold tolerances on complex features in hardened materials that would otherwise require grinding or hand fitting.
Wire EDM is not the right process for every feature. It is slower than milling for bulk material removal. The correct approach is to use it selectively for the features where conventional machining reaches its limits.
Key Takeaways
Tight tolerance machining requires a system of controls across machine setup, tooling, design, calibration, and environment. No single tip replaces the others.
| Point | Details |
|---|---|
| Warm up before cutting | Run CNC machines for 10–15 minutes to stabilize thermal expansion before any precision cuts. |
| Match tooling to the job | Use sharp, correctly rated tooling with measured runout and scheduled replacement intervals. |
| Tolerance only what matters | Apply tight tolerances to functional features only; use standard tolerances everywhere else. |
| Calibrate on a schedule | Calibrate machines, gauges, and fixtures regularly with traceable records to prevent drift. |
| Control the environment | Hold shop temperature near 68°F and isolate machines from vibration for consistent results. |
What I’ve learned about tight tolerances after years on the floor
The most expensive mistake I see on engineering drawings is the blanket tight tolerance. An engineer specifies ±0.0005" on every dimension because the part looks important, and then the shop spends three times the budgeted hours trying to hold a tolerance that has no functional purpose on half the features. The part costs more, the lead time stretches, and the scrap rate climbs. None of that improves the product.
The engineers who get this right treat tolerance specification as a design decision, not a safety net. They do the stack-up analysis before the drawing goes out. They talk to the machinist about what the process can reliably hold. They put tight tolerances on the two or three dimensions that actually control assembly function, and they let everything else float to a standard grade.
The other thing I’ve seen consistently is that shops that invest in environmental control and calibration programs outperform shops that rely on operator skill alone. Skill matters. But a skilled operator working on a machine that drifts 0.0003" between morning and afternoon is fighting a losing battle. The system has to support the work.
My honest advice: build your precision machining process around data. Track your process capability. Know your Cpk values for critical features. When the data tells you a process is drifting, fix it before it produces scrap. That discipline is what separates shops that hold tight tolerances reliably from shops that hold them sometimes.
— Andrew
Machiningtechllc’s precision machining capabilities
Machiningtechllc has delivered precision contract machining from its Webster, Massachusetts facility since 1985, producing over 20 million parts annually across aerospace, defense, and industrial applications.
The facility runs CNC milling, turning, Hydromat systems, and wire EDM with documented calibration programs and environmental controls built into the production process. Engineering support is available from the first design review through full-scale production. For OEMs and manufacturers who need contract machining services with verified tight tolerance capability, Machiningtechllc offers the equipment, process controls, and throughput to deliver. Contact the team to discuss your project requirements.
FAQ
What tolerance range counts as “tight” in CNC machining?
Tight tolerances in CNC machining generally refer to dimensional accuracy of ±0.001" or better, with high-precision work reaching ±0.0005" or tighter. The exact threshold depends on the process, material, and industry standard being applied.
How does machine warm-up improve tolerance accuracy?
Warming up a CNC machine for 10–15 minutes stabilizes thermal expansion in the spindle, ballscrews, and casting. This reduces dimensional deviation caused by temperature-driven growth in machine components.
Why do tight tolerances increase manufacturing cost?
Tight tolerances require slower speeds, more frequent tool changes, additional inspection steps, and higher scrap risk. Applying them only to functional features keeps cost in proportion to actual quality requirements.
What is stack-up analysis and when should I use it?
Stack-up analysis calculates how individual feature tolerances accumulate across an assembly to determine whether the final fit or function will be achieved. Use it during design, before releasing drawings, to set tolerances that are both functional and manufacturable.
How does fixture design affect tolerance achievement?
Secure, repeatable workholding prevents part movement under cutting forces, which directly controls dimensional accuracy. The 3-2-1 locating principle eliminates all six degrees of freedom without distorting the part under clamping load.
