TL;DR:
- Multi-spindle machining enables high-volume, synchronized production by cutting multiple parts or features simultaneously. It offers faster cycle times and lower costs per part but requires significant setup, maintenance discipline, and stable demand to maximize ROI. This technology is ideal for industries like automotive, aerospace, and medical manufacturing where consistent precision and throughput are essential.
Multi-spindle machining is defined as a manufacturing process in which a machine equipped with two to eight or more spindles performs simultaneous cutting operations on multiple workpieces or multiple features of a single part within one cycle. Where a single-spindle lathe finishes one part at a time, a multi-spindle machine completes the same work on several parts in parallel, compressing what would be sequential operations into one synchronized cycle. Machines like the INDEX MS16 and Schutte multi-spindle automatic lathes represent the current standard in high-volume turning. For engineers running production volumes in the tens of thousands per month, this architecture is not a luxury. It is the difference between a profitable contract and one that bleeds margin on labor and floor time.
What is multi-spindle machining and how does it work?
Multi-spindle machines achieve their speed through spindle synchronization. Each spindle holds a workpiece or tool, and all spindles rotate and cut simultaneously within a shared drum or turret. When one station completes its operation, the drum indexes to the next position, so every spindle is always cutting. No spindle sits idle waiting for another to finish.
Cycle times for turning on multi-spindle CNC machines range from 3 to 40 seconds per part, while single-spindle machines range from 30 to 180 seconds for equivalent operations. That gap represents a five-times throughput advantage in turning applications. For a plant running three shifts, that multiplier translates directly into parts per shift and cost per unit.

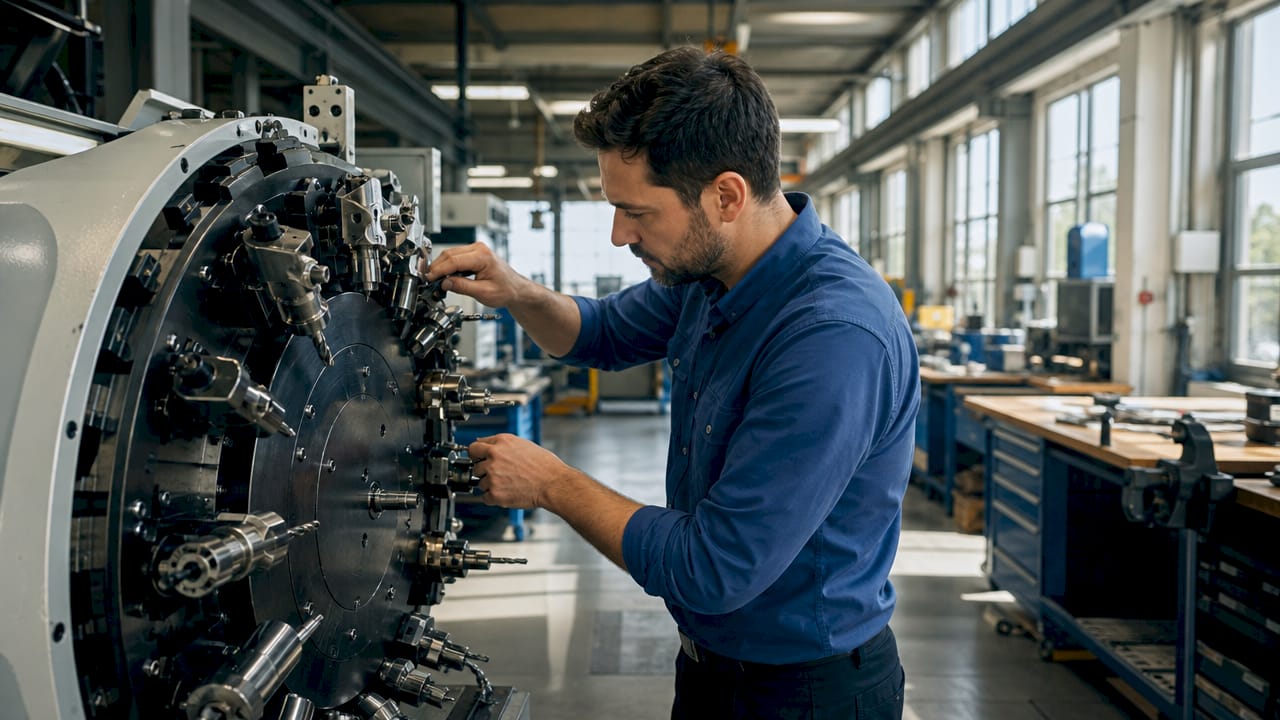

Tooling layout is where most of the engineering work happens. Each station in the spindle drum is assigned a specific operation: rough turning, finish turning, drilling, threading, or grooving. The goal is to balance the load across stations so no single station becomes the bottleneck. Typical spindle counts run from 2 to 8 for turning machines and 2 to 4 for milling machines, with the configuration chosen to match part complexity and volume targets.
| Configuration | Cycle time per part | Throughput (parts/hour) | Typical application |
|---|---|---|---|
| Single-spindle CNC lathe | 30 to 180 seconds | 20 to 120 | Prototypes, low-volume runs |
| 4-spindle multi-spindle machine | 8 to 40 seconds | 90 to 450 | Medium-to-high volume turning |
| 6-spindle multi-spindle machine | 3 to 20 seconds | 180 to 1,200 | High-volume commodity parts |
| 8-spindle multi-spindle machine | 3 to 15 seconds | 240 to 1,440 | Automotive and fastener production |
Pro Tip: Balance fixture loading across all spindle stations before finalizing your tooling layout. An unbalanced station forces the entire drum to wait on the slowest operation, erasing the throughput advantage you paid for.
Key benefits and trade-offs of multi-spindle machining
The throughput advantage is the headline, but the real case for multi-spindle machines is built on cost per part. Multi-spindle machines require higher upfront capital but realize lower per-unit costs through reduced labor, lower energy consumption per part, and fewer secondary operations. One operator can oversee a multi-spindle line producing 1,200 parts per hour that would otherwise require four or five single-spindle machines and the operators to run them.
Footprint efficiency is a benefit that often surprises engineers new to the technology. Horizontal multi-spindle machines replace multiple single-spindle units in one floor footprint, freeing space for inspection, assembly, or additional production capacity. In a 70,000 square foot facility, that consolidation compounds quickly across a full production floor.
The trade-offs are real and should not be minimized. Setup and changeover on a multi-spindle machine is significantly more complex than on a single-spindle lathe. Fixturing multiple blanks, calibrating each station, and verifying synchronization takes time. For short runs or frequent design changes, that setup cost can eliminate the cycle time savings entirely.
The most serious operational risk is maintenance-related. A single spindle failure can halt the entire machine, converting a high-throughput asset into a production bottleneck instantly. This is not a theoretical concern. It is the primary reason experienced shops treat multi-spindle machines as part of a total cost-of-ownership strategy rather than a simple capital purchase decision.

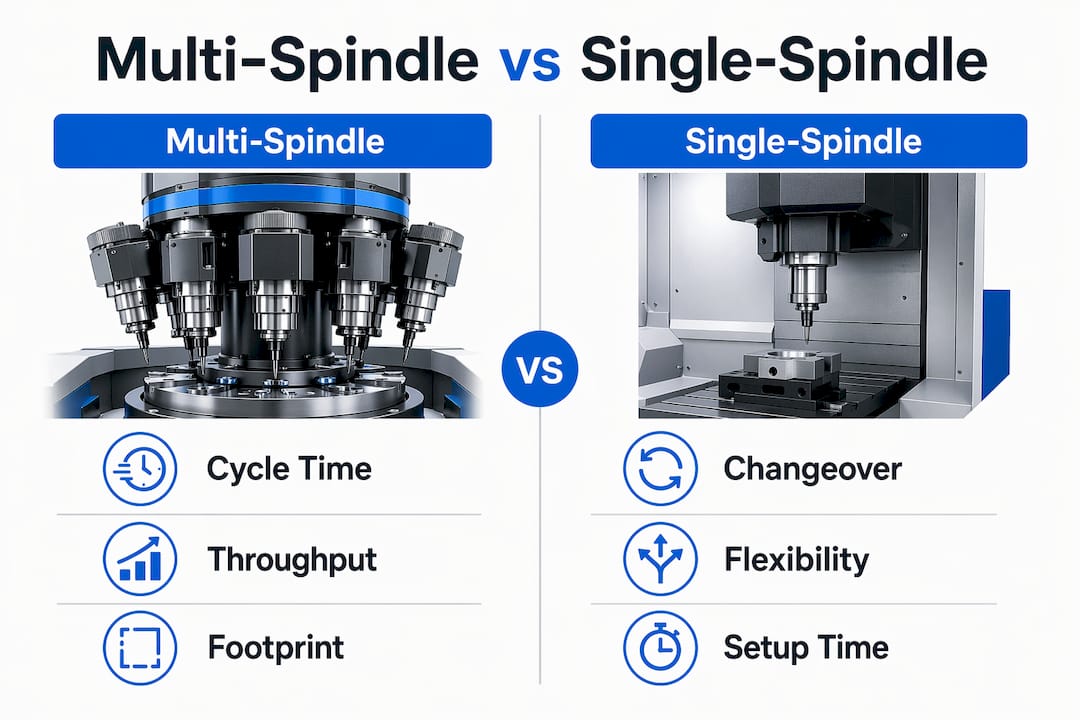

| Factor | Multi-spindle | Single-spindle |
|---|---|---|
| Cycle time per part | 3 to 40 seconds | 30 to 180 seconds |
| Upfront capital cost | High | Low to moderate |
| Cost per part at volume | Low | Higher |
| Setup and changeover time | Long | Short |
| Flexibility for design changes | Low | High |
| Maintenance risk | High (single failure halts all) | Low (isolated failures) |
| Labor per unit produced | Low | Higher |
Pro Tip: Build a preventative maintenance schedule into your production calendar before the machine ships. Shops that treat maintenance as reactive rather than scheduled consistently report the highest downtime rates on multi-spindle lines.
Industries and applications that rely on multi-spindle machining
Multi-spindle machining dominates wherever part volumes are high, geometries are repeatable, and tolerances are tight. Automotive, aerospace, and medical device manufacturing are the three largest sectors by volume, each demanding parts that meet exacting specifications across millions of units per year.
The part types that benefit most share a common profile: rotationally symmetric, moderate complexity, and produced in quantities where even a two-second cycle time reduction generates measurable savings. Specific examples include:
- Engine components: Valve bodies, camshaft journals, and fuel injector housings produced in automotive plants at volumes that make single-spindle production economically unviable
- Surgical instruments and implant components: Bone screws, cannulas, and instrument shafts where dimensional consistency across large batches is non-negotiable
- Fasteners and threaded inserts: High-volume turned fasteners where the economics of multi-spindle machining are most obvious
- Firearms components: Bolt carriers, trigger housings, and barrel extensions requiring tight tolerances at production volumes that reward parallel spindle architecture
- Industrial fittings and connectors: Hydraulic fittings, pneumatic connectors, and fluid control components produced for OEM supply chains
Multi-spindle machines integrate naturally into automated production lines. Bar feeders load raw stock automatically, and parts exit the machine ready for washing, inspection, or secondary operations. For aerospace precision machining, this integration with automated handling systems is what makes multi-spindle machining viable at the tolerances aerospace customers require. The CNC automation advantages that aerospace manufacturers depend on in 2026 are built on exactly this kind of parallel-spindle architecture.
How to decide between multi-spindle and single-spindle machining
The decision is not about which machine is better in the abstract. It is about matching machine architecture to production requirements. The wrong choice in either direction costs money.
Single-spindle machines are the correct answer when production volumes are low, design changes are frequent, or part complexity requires operations that cannot be distributed across a spindle drum without creating an unbalanced cycle. Single-spindle machines provide greater flexibility for prototyping and frequent design changes, and their shorter setup times make them the right tool for contract shops handling diverse, low-volume work.
Multi-spindle machines justify their capital cost and setup complexity when the following conditions are met:
- Volume threshold: Production runs exceed 50,000 parts per year for a given part number, with stable demand forecasts
- Design stability: Part geometry is locked and design changes are infrequent, since each change requires re-fixturing and re-calibrating multiple stations
- Tolerance requirements: Parts require consistent, repeatable tolerances that benefit from in-cycle inspection built into the machine’s drum sequence
- Labor cost pressure: Labor costs are significant enough that reducing operator headcount per unit produced creates measurable margin improvement
- Floor space constraints: Consolidating multiple single-spindle machines into one multi-spindle footprint frees capacity for other operations
The ROI analysis should account for long-term tooling cost savings from strategic spindle positioning, not just the upfront machine price. Engineers who evaluate multi-spindle investments on purchase price alone consistently underestimate the return.
Best practices for implementing multi-spindle machining lines
Implementation success depends on decisions made before the machine arrives on the floor. Programming a multi-spindle machine is fundamentally different from programming a single-spindle CNC lathe. Each station requires its own toolpath, and those toolpaths must be synchronized so the drum indexes at the right moment. Shops that underestimate this complexity face extended commissioning periods that delay the production gains they purchased the machine to achieve.
Operator skill is the variable that separates high-performing multi-spindle lines from underperforming ones. Properly maintained multi-spindle machines running in synchronized cycles can dramatically improve parts per hour, but that performance depends on operators who understand spindle synchronization, tooling wear patterns across multiple stations, and in-process inspection protocols. Investing in structured training before production launch is not optional. It is the fastest path to rated throughput.
Process stability requires in-cycle inspection built into the production sequence. Checking part dimensions after the machine has produced 500 out-of-tolerance parts is not quality control. It is waste. Shops running complex part manufacturing on multi-spindle lines use in-cycle gauging at critical stations to catch drift before it becomes scrap.
Pro Tip: Assign a dedicated tooling engineer to the first 90 days of multi-spindle production. Tooling wear patterns across multiple stations are not intuitive, and catching imbalances early prevents the kind of cascading quality failures that damage customer relationships and erode the ROI case for the machine.
Key takeaways
Multi-spindle machining delivers its full value only when volume, design stability, and maintenance discipline are all present simultaneously.
| Point | Details |
|---|---|
| Cycle time advantage | Multi-spindle machines achieve turning cycle times 3 to 40 seconds versus 30 to 180 seconds for single-spindle equivalents. |
| Cost-of-ownership lens | Evaluate multi-spindle investments on total cost per part over machine life, not purchase price alone. |
| Maintenance is the critical risk | A single spindle failure halts the entire machine; proactive maintenance schedules are non-negotiable. |
| Application fit matters | High-volume, design-stable parts in automotive, aerospace, and medical manufacturing deliver the strongest ROI. |
| Operator skill drives output | Synchronized cycle performance depends on trained operators and in-cycle inspection, not machine specs alone. |
What I’ve learned running multi-spindle lines in high-volume shops
The engineers I see struggle most with multi-spindle machining are the ones who treat it as a faster version of single-spindle work. It is not. It is a different manufacturing philosophy that requires you to think about the entire cycle as one synchronized unit rather than a sequence of individual operations.
The setup time investment is real, and it catches shops off guard. I have watched facilities spend three weeks commissioning a six-spindle line that should have taken ten days, because they underestimated the tooling balance work. The parts per hour numbers look extraordinary on paper. Getting there requires patience and discipline in the setup phase that most production schedules do not budget for.
On maintenance: the shops that run multi-spindle lines most profitably are the ones that treat the machine like a piece of critical infrastructure, not a production asset. Scheduled spindle inspections, tooling replacement intervals tied to part count rather than calendar time, and a spare parts inventory for high-wear components are what separate a 95% uptime line from one that averages 70%. That 25-point gap in uptime is the difference between a profitable contract and one that misses delivery commitments.
The future of multi-spindle machining is tighter integration with real-time monitoring systems. Shops that instrument their spindle loads and feed rates today are building the data foundation that will allow predictive maintenance to replace reactive repair. That shift will make the maintenance risk manageable in a way that manual inspection schedules never fully achieve.
— Andrew
How Machiningtechllc supports high-volume multi-spindle production
Machiningtechllc has operated precision contract manufacturing from its Webster, Massachusetts facility since 1985, producing over 20 million parts annually across aerospace, defense, firearms, and industrial machinery sectors. The facility’s Hydromat systems and CNC turning lines are configured specifically for the kind of high-volume, tight-tolerance production where multi-spindle architecture delivers its strongest results.
If your program requires precision parts manufacturing at volumes where cycle time and cost per part are the deciding factors, Machiningtechllc has the equipment, floor space, and process discipline to deliver. The team’s CNC milling and turning capabilities cover the full range of turned and milled components that multi-spindle production demands, from prototype validation through full-scale contract runs.
FAQ
What is multi-spindle machining used for?
Multi-spindle machining is used to produce high-volume, precision-turned parts in industries including automotive, aerospace, and medical device manufacturing. Typical parts include engine components, surgical instruments, fasteners, and firearms components.
How much faster is multi-spindle machining than single-spindle?
Multi-spindle machines achieve cycle times of 3 to 40 seconds per part versus 30 to 180 seconds for single-spindle machines, representing up to a five-times throughput advantage in turning applications.
What are the main risks of multi-spindle machining?
The primary risk is maintenance downtime. A single spindle failure halts the entire machine, making proactive maintenance schedules and spare parts inventory critical to protecting production output.
When does multi-spindle machining make financial sense?
Multi-spindle machining justifies its capital cost when annual production volumes exceed roughly 50,000 parts per year for a stable part design. Total cost-of-ownership analysis, including labor reduction and tooling savings, typically shows positive ROI at sustained high volumes.
Can multi-spindle machines match single-spindle part quality?
Yes. Modern multi-spindle machines produce parts of comparable quality to single-spindle machines when tooling is properly balanced and in-cycle inspection is built into the production sequence.
