Stop Scrapping Parts: Engineering Drawing Standards for Drafters

by | Sep 2, 2026

Drafter reviewing a mechanical drawing

Use the ASME Y14 family as your baseline: ASME Y14.5-2018 (R2024) governs geometric dimensioning and tolerancing, while ASME Y14.1 and ASME Y14.100 govern sheet formats and drawing layout. Add the NASA drawing standards manual for practical templates. Together they give drafters, engineers, and machinists one shared language, which is what actually prevents scrapped parts and rejected lots.

TL;DR:

  • Accurate interpretation and correct application of GD&T symbols and datums are essential for ensuring functional tolerances and avoiding rejected parts.
  • Maintaining consistent and properly formatted drawings with clear revision control and unit labeling minimizes errors and prevents miscommunication.
  • Adoption of model-based definition (MBD) integrates dimensions directly into CAD models, reducing ambiguity and streamlining inspection processes.
  • Industry-specific standards, especially in aerospace and defense, demand stricter documentation and traceability to meet quality and safety requirements.
  • Proper training and certification in GD&T and drawing standards improve decision-making, reduce scrap rates, and support compliance with quality systems like ISO 9001 and AS9100.

Table of Contents

Engineering Drawing Standards: The ASME Y14 Family, NASA Manuals, and ISO

Most confusion in a drafting department comes from mixing up which document controls which decision. Once you separate them by function, the whole system gets simpler.

The ASME Y14 series is the backbone of American engineering drafting practice, and each sub-standard has a specific job:

  • ASME Y14.5 covers geometric dimensioning and tolerancing, the symbols and rules that define how much a feature can deviate from its ideal shape or position.
  • ASME Y14.1 defines decimal-inch sheet sizes, formats, and zoning for drawings and CAD models.
  • ASME Y14.100 sets general drawing practices, including title blocks, revision procedures, and how drawings relate to other documents in a technical data package.
  • ASME Y14.24 addresses types of engineering drawings such as detail, assembly, and installation drawings, so everyone agrees on what kind of drawing they’re looking at.
  • ASME Y14.41 governs digital product definition and model-based definition, the rules for putting dimensional data directly into 3D CAD models instead of a flat drawing.

A helpful way to keep them straight, as the ANSI Blog explains, is that Y14.5 tells you what tolerances a part has to meet, while Y14.1 and Y14.100 tell you how to document and arrange the drawing that communicates those tolerances.

NASA’s drawing standards manual fills a gap the ASME standards leave open. ASME documents are normative. They tell you the rules but rarely show a finished, annotated example. NASA’s GSFC manual documents actual drafting conventions, title block layouts, and revision practices used on real hardware programs, which makes it a genuinely useful reference when you want to see a rule applied rather than just stated.

ISO standards (the ISO 1101 and ISO 128 series, among others) cover similar ground for international suppliers, but they diverge from ASME in notation and interpretation rules, particularly around default tolerancing and datum concepts. If your customer base is exclusively domestic and your purchase orders reference ASME, stick with the Y14 family. If you’re quoting European or Asian OEMs, expect ISO callouts and budget time to reconcile the two systems on shared prints, since a drawing built entirely to one system rarely translates cleanly to the other without a note explaining which convention governs.

Discipline-specific work adds another layer. Process flow diagrams and piping and instrumentation drawings, for instance, follow their own preparation standards on top of general drafting rules. Don’t assume a general mechanical drawing standard covers a P&ID just because both are technical drawings.

What Does GD&T Mean in ASME Y14.5?

Geometric dimensioning and tolerancing gives you a symbolic language for describing how a feature is allowed to vary, tied directly to its function rather than an arbitrary box around a number. ASME Y14.5-2018 (R2024) is the standard that defines every symbol, rule, and modifier in that language for U.S. manufacturing.

A feature control frame is the compact box that carries the instruction: a geometric characteristic symbol, a tolerance value, and any material condition modifiers, all referenced to datums. Datums are the reference features, surfaces, or points a part gets measured from, and choosing them correctly is often harder than picking the tolerance value itself. Get the datum scheme wrong and even a perfectly toleranced part can be rejected on a fixture it was never designed to sit in.

The common symbols you’ll use constantly:

  • Position controls the location of a feature, usually a hole pattern, relative to datums.
  • Profile controls the form of a surface along a defined path, common on castings and sheet metal.
  • Flatness controls how much a single surface can deviate from a perfect plane.
  • Circularity controls the roundness of a feature independent of its size.
  • Perpendicularity and parallelism control orientation between features or between a feature and a datum.

Material condition modifiers change how much tolerance a part actually gets. Maximum Material Condition (MMC) allows a bonus tolerance as a feature departs from its worst-case material size, which is why a hole drilled slightly oversize can still pass inspection even though its position tolerance on the print looks tighter than the hole actually needs. Least Material Condition (LMC) works the opposite direction, protecting minimum wall thickness on thin-walled parts. Y14.5 and its supplemental mathematical definitions spell out exactly how these bonus tolerances get calculated and inspected, removing the guesswork that plagued shops before GD&T became standard.

Plus/minus tolerancing still has its place on simple, non-critical features, but it breaks down fast on anything with a pattern of holes, a complex profile, or a functional fit. A rectangular tolerance zone from stacked plus/minus dimensions creates a square zone of acceptable variation around a true position, when the actual functional requirement is usually a circular zone. GD&T’s true position tolerancing matches the real-world clearance problem, which is one reason GD&T remains foundational to modern manufacturing rather than a nice-to-have skill.

Pro Tip: Before you release a drawing with a new GD&T callout, walk it through with your inspection team first. A feature control frame that’s technically correct but impossible to measure with the gauges your shop owns will generate rework faster than a missing tolerance ever would.

Standardizing on GD&T instead of ad hoc plus/minus notation is widely credited with cutting inspection disputes between engineering and the shop floor, since both sides are reading the same symbols against the same rulebook instead of arguing over what a designer “probably meant.”

How Should a Drawing Title Block and Sheet Layout Be Formatted?

Consistent formatting is what lets a machinist glance at any drawing from any engineer and know exactly where to look for critical information. ASME Y14.1 and Y14.100 exist precisely to remove that guesswork.

  1. Title block placement and content. Put the title block in the lower right corner of the sheet, and populate it with part name, drawing number, revision letter, material, scale, drawn/checked/approved names and dates, and the governing tolerance standard (typically a note referencing ASME Y14.5).
  2. Revision block. Keep it in the upper right corner or adjacent to the title block, listing revision letter, description of the change, date, and approval initials, in the sequence Y14.100 recommends for traceability.
  3. Sheet size selection. Choose from the standard decimal-inch sizes in Y14.1 (A through E) or the metric A-series if the customer requires ISO formatting, and never mix conventions on a multi-sheet set.
  4. Lettering height. Use a minimum of 0.12 inch (3mm) for dimension text on full-size prints, larger for reduced-scale reproductions, so photocopies and PDFs stay legible.
  5. Line weights. Reserve the heaviest line weight for visible outlines and object lines, a medium weight for dimension and extension lines, and the lightest weight for centerlines and hidden lines, matching the hierarchy Y14.100 lays out.
  6. View placement and scale. Arrange orthographic views following standard third-angle projection unless the drawing explicitly notes first-angle, and state the scale plainly rather than relying on “not to scale” as a default excuse.

None of these rules are exciting, and that’s exactly the point. A drafter who nails formatting consistently is the one whose drawings never get sent back with a red pen mark that has nothing to do with the actual design.

What’s the Difference Between Baseline and Chain Dimensioning?

Choosing units and a dimensioning scheme should follow the part’s function, not habit. Get this wrong and you inherit tolerance stacking problems that show up as scrap three months into production.

Decimal-inch notation remains standard for domestic U.S. mechanical drawings, typically to three or four decimal places depending on tolerance class. Metric notation, in millimeters, applies when the customer specifies it or when the part mates with metric hardware, and mixing inch and metric callouts on one drawing without clear unit labels is one of the fastest ways to generate a $2,000 scrap bin.

Baseline dimensioning measures every feature from one common datum, which prevents tolerance stack-up between features but requires more dimension lines cluttering the view. Chain dimensioning measures each feature from the previous one in sequence, which reads cleanly but accumulates tolerance error across the chain, since every dimension’s error adds to the next. A five-hole pattern dimensioned in a chain can drift the last hole out of tolerance even when every individual dimension checks out, which is exactly the failure baseline dimensioning is designed to prevent.

Tolerance selection comes down to three questions:

  • What does the feature actually need to do functionally, mate with a bearing, seal against a gasket, clear an adjacent part?
  • What can your process realistically hold repeatably, and have you checked that against actual process capability data rather than a textbook default?
  • Can your inspection method actually measure the tolerance you specified, or does it require equipment the receiving shop doesn’t own?

Pro Tip: Specify the loosest tolerance the function allows, not the tightest one you can imagine. Every unnecessary tenth of a thousandth you tighten adds cycle time, tooling wear, and inspection cost that compounds across a production run of thousands of parts.

How Do You Read Common Drawing Symbols and Notes?

Symbols exist so a drawing communicates the same instruction to every reader, regardless of which shift, shop, or country is reading it. A few categories cover most of what you’ll encounter daily.

Surface finish symbols, typically a checkmark shape with a roughness value in microinches or micrometers, specify how smooth a surface must be, critical on sealing faces and bearing bores. Weld symbols use a reference line and arrow with a symbol indicating weld type, size, and process, standardized so a welder in one facility interprets them identically to one across the country. Countersink and counterbore symbols indicate recessed features for fastener heads, each carrying diameter and depth or angle callouts that eliminate any ambiguity about how deep is deep enough.

Abbreviations save space but only when everyone agrees on them. Standard ones like DIA, TYP, REF, and MAX are safe. Anything shop-specific or invented on the fly should be spelled out in a general note instead, because an abbreviation that means one thing in your drafting department can mean something else entirely to a supplier three states away.

  • Reference dimensions get parentheses and the REF label, never a tolerance, since they’re informational only.
  • Notes referencing a standard should cite the exact document and revision, such as “PER ASME Y14.5-2018,” not a vague “per standard practice.”
  • Avoid stacking multiple interpretations into one note; one instruction per note keeps the drawing auditable.

Ambiguous notes are the single most common source of a request-for-information ticket between engineering and the shop floor.

How Does Model-Based Definition Change Drawing Standards?

Model-based definition, or MBD, embeds dimensions, tolerances, and notes directly into the 3D CAD model instead of a flat 2D drawing, making the annotated model itself the legal product definition. ASME Y14.41 sets the rules for how that annotation gets structured so it remains unambiguous without a paper drawing as backup.

Applying GD&T in a 3D model isn’t just pasting the same symbols onto a rotated view. Best practice groups annotations logically by feature, uses model views that isolate the datum structure for each callout, and includes a 3D PMI (product manufacturing information) set that a CMM programmer can consume directly rather than re-deriving from a 2D layout.

  • Embed GD&T annotations tied to specific model geometry, not floating text disconnected from the feature it describes.
  • Export inspection-ready data in formats your CMM software or supplier’s inspection system can actually parse, confirming compatibility before the file leaves your building.
  • Maintain a companion 2D drawing for legacy suppliers or contracts that still require a signed paper document, at least until your full supply chain is MBD-capable.

Version control gets trickier with MBD because the model and its annotation set change together. Native CAD formats carry full annotation fidelity but tie you to one software ecosystem, while neutral formats like STEP AP242 preserve most PMI data across platforms, which matters enormously when your supplier runs different CAD software than you do. Embedding annotations directly in 3D data is widely seen as reducing ambiguity compared to translating a 2D drawing by hand, simply because there’s one fewer translation step where meaning can get lost.

How Should You Structure Revision Control and File Handoffs?

A revision system only works if everyone downstream trusts that “Rev C” means the same thing on the shop floor as it does in engineering’s PLM system. Sloppy revision control is how a machinist ends up running a superseded print on a $40,000 production order.

  1. Structure the revision block per Y14.100 guidance, listing revision letter (skip I, O, and Q to avoid confusion with numerals), a brief change description, the date, and an approval signature or initials for each entry.
  2. Never reuse a revision letter, even if a change gets reverted; increment forward and note the reversal explicitly so the history stays accurate.
  3. Choose exchange formats deliberately. PDF with embedded metadata works well for view-only distribution to suppliers who don’t need to edit geometry; STEP or other neutral formats preserve model geometry and PMI for CAD-to-CAD exchange; reserve native CAD files for internal teams or trusted partners who share your software.
  4. Build a handoff checklist before release: current drawing revision confirmed against the bill of materials, inspection plan referencing the correct GD&T callouts, and material certifications matched to the actual heat lot or batch being shipped.

A missing or outdated material certification is one of the most common reasons a completed lot gets held at final inspection, even when every dimension on the part checks out clean.

What Should Drafters Check Before Releasing a Drawing?

A five-minute check before release catches most of the errors that otherwise surface weeks later as a nonconformance report.

  • Confirm the title block: part number, revision, material callout, and drawn/checked names all filled in and matching the PLM record.
  • Verify every dimension carries a unit callout, and that inch and metric aren’t mixed without a clear note.
  • Check that every toleranced feature actually has a tolerance, GD&T or plus/minus, with no floating dimension left at a default “typical” value that nobody actually specified.
  • Trace each GD&T callout back to a valid datum reference frame; a feature control frame referencing a datum that doesn’t exist on the drawing is a real and surprisingly common error.
  • Read every note aloud to yourself; if it sounds ambiguous when spoken, it will look ambiguous to a machinist at 6 a.m. on a Monday.

Pro Tip: Run new drafters through a peer check before their first few drawings go to the floor, not after a scrapped part forces the conversation. It’s a five-minute habit that saves days of rework.

A minimal sign-off flow, drafter self-check, then a second engineer, then a manufacturing engineer for producibility, catches most issues before they cost real material.

How Machining Technologies LLC Applies Drawing Standards on the Shop Floor

High-volume Hydromat production leaves no room for an ambiguous drawing. When a print calls out true position with MMC modifiers on a firearm component running through Hydromat rotary transfer, Machining Technologies LLC treats that bonus tolerance as real, functional relief, not a rounding error, because it directly affects cycle time across a production run in the tens of thousands.

CNC milling and turning jobs get GD&T translated into specific fixture and probing plans before the first part runs. A profile tolerance on a cast surface, for instance, dictates which CMM probe path and sampling density the shop’s inspection team uses, decisions drawn directly from the drawing’s datum structure rather than improvised at the machine.

Wire EDM work on tight-tolerance aerospace and defense parts depends on datum callouts being unambiguous, since a single misread datum reference frame can send a whole fixture setup in the wrong direction. Turning a drawing into a repeatable manufacturing workflow this way, rather than interpreting intent on the fly, is what keeps rework rates down across millions of parts a year.

How Have Engineering Drawing Standards Evolved Over Time?

Engineering drawing standards trace back to formalized orthographic projection systems developed in the 18th and 19th centuries, refined for industrial mass production during the early 20th century as interchangeable parts manufacturing demanded a shared visual language between designers and machinists.

The American Standards Association, ASME’s institutional predecessor, began publishing formal drafting standards in the mid-20th century, consolidating what had been inconsistent shop-by-shop conventions into national documents. GD&T itself matured substantially after World War II and through the Cold War era, driven largely by aerospace and defense programs that needed functional tolerancing far more rigorous than simple plus/minus dimensioning could provide on interchangeable parts built by different suppliers.

NASA’s own drawing manual, first developed to support hardware programs with zero tolerance for ambiguity, reflects that same defense and aerospace lineage, and its practical, example-driven approach still influences how organizations train new drafters today.

The most recent inflection point is the shift toward digital product definition. Where drawings once existed only on vellum and later as 2D CAD printouts, ASME Y14.41 and the broader MBD movement now push the annotated 3D model itself toward becoming the legal record, a change decades in the making but still not universally adopted across every industry or supplier tier. Paper and PDF drawings remain the majority practice in many shops, with full MBD adoption concentrated most heavily in aerospace and automotive supply chains that can mandate it contractually.

How Do Aerospace, Automotive, and Defense Drawing Standards Differ?

Every industry starts from the ASME Y14 baseline, then layers its own requirements on top based on risk tolerance and regulatory exposure.

Aerospace and defense work typically demands the tightest documentation discipline, often requiring full material traceability, first article inspection reports mapped directly to drawing dimensions, and strict adherence to AS9100 quality system requirements layered over the base ASME standards. A single dimension out of tolerance on a flight-critical part can ground an inspection lot entirely, so datum structures and GD&T callouts get scrutinized far more heavily during design review than on commercial work.

Automotive manufacturing leans on Production Part Approval Process (PPAP) documentation alongside standard drawings, with heavy emphasis on statistical process capability data tied to specific tolerance bands, since automotive suppliers run tolerances against real production data rather than assuming a process can simply hold a spec because it’s written down.

Firearms manufacturing, an area where interchangeability between parts from different production batches is non-negotiable for both function and safety compliance, tends to combine aerospace-level GD&T rigor with high-volume production realities, since parts must interchange across batches produced months apart on the same tooling.

General industrial machinery often tolerates looser documentation overhead, relying more heavily on standard ASME practices without the additional compliance paperwork aerospace or automotive contracts require. None of these industries invent their own tolerancing language from scratch. They all build on the same Y14.5 symbols and Y14.100 layout conventions, just with different verification burdens stacked on top depending on what happens if a part fails in the field.

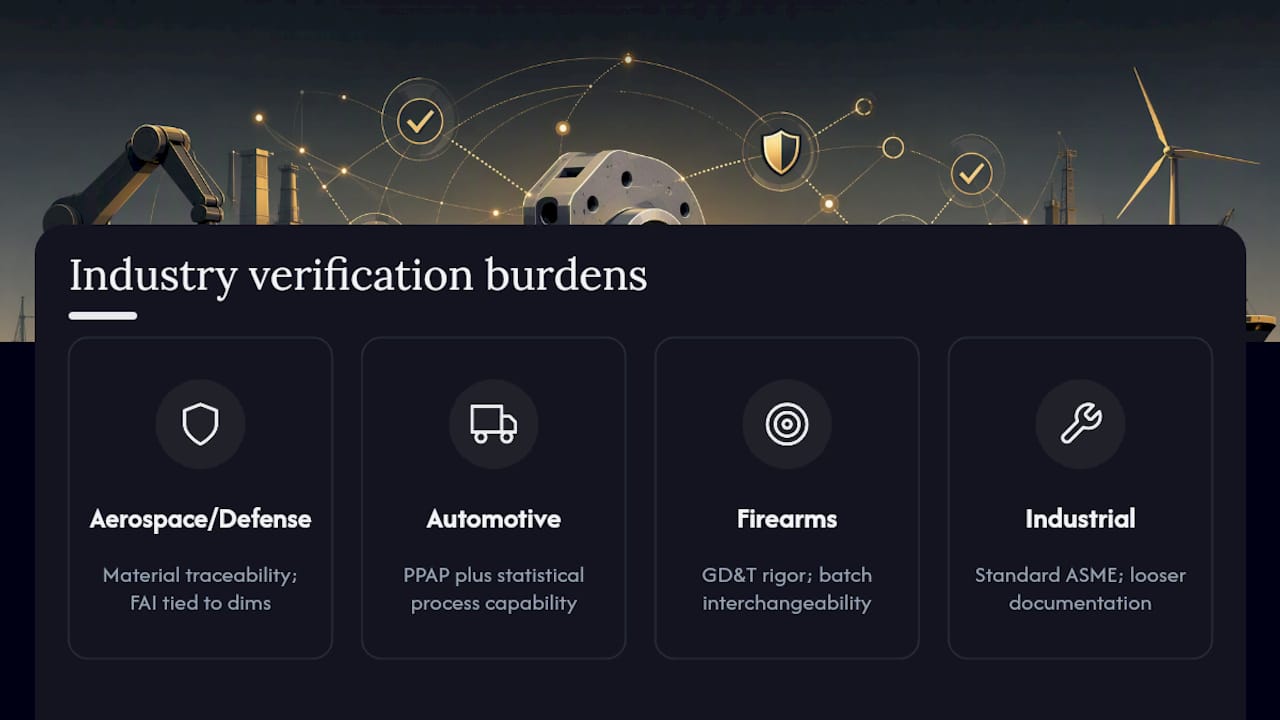

Industry-specific drawing requirements comparison

Why Do Drawing Standards Matter for Quality Assurance?

A drawing is the legal contract between design intent and the part that actually ships, which makes drawing standards the backbone of most manufacturing quality systems rather than a drafting formality.

Quality management systems like ISO 9001 and AS9100 require documented, controlled engineering data as a foundational element of compliance, and a drawing with no revision control or ambiguous tolerancing is effectively an uncontrolled document, regardless of what your quality manual claims. Auditors checking a shop’s quality system routinely pull drawings at random specifically to verify revision traceability against the parts on the floor.

Consistent GD&T and dimensioning practice also drives statistical process control. You can’t build a meaningful capability study (a Cpk value, for instance) against a tolerance that’s ambiguous or inconsistently interpreted between the person who set the machine and the person who inspected the part. Standardized tolerancing gives both sides the same measurable target.

Regulatory compliance in regulated industries, defense export controls, FDA-adjacent medical device work, aerospace airworthiness, treats the drawing as the primary evidentiary record during an audit or a failure investigation. When something goes wrong in the field, investigators trace the failure back through the drawing’s revision history first, which is exactly why sloppy revision control isn’t just inefficient. It’s a genuine liability exposure that surfaces at the worst possible moment.

What Software Tools Help Enforce Drawing Standards?

Modern CAD platforms, including Solidworks, Autodesk Inventor, and Siemens NX, build ASME Y14.5 symbol libraries directly into their dimensioning and annotation tools, which removes most manual symbol-drawing errors that plagued hand-drafted and early digital drawings alike.

PLM (product lifecycle management) systems handle the revision control side, enforcing approval workflows so a drawing can’t advance to “released” status without the required sign-offs, and maintaining an audit trail that satisfies most quality system requirements automatically rather than relying on someone remembering to update a paper log.

CMM programming software, often tied directly to a specific inspection machine brand, increasingly imports GD&T annotations straight from MBD-enabled 3D models, letting inspection planning start from the same data set the designer created instead of a separate manual re-entry step that introduces its own transcription errors.

None of this software replaces understanding the standards themselves. A CAD package will happily let you apply a position tolerance to a datum scheme that makes no physical sense, and it won’t flag that error, because the software checks syntax, not engineering judgment. The tools speed up compliant work; they don’t substitute for knowing what compliant work looks like in the first place.

Where Can Engineers and Drafters Get GD&T Certification?

Formal training closes the gap between reading a standard and actually applying it correctly under production pressure, which is a different skill than passing a written test.

ASME itself offers GD&T certification programs, including a Geometric Dimensioning and Tolerancing Professional (GDTP) credential with distinct certification and technologist tracks, aimed at drafters and engineers who need a recognized, portable credential for their resume. Several private training organizations also run ASME Y14.5-aligned courses, ranging from short workshops covering the fundamentals to multi-day intensives that work through real print interpretation exercises with instructor feedback.

Community colleges and technical schools in manufacturing-heavy regions frequently offer drafting and blueprint reading courses that incorporate current ASME Y14.5 content into associate-degree programs for CAD and manufacturing technology, often a more affordable path for early-career drafters than standalone certification courses. In-house mentorship still does a lot of the real teaching, though. Pairing a new drafter with an experienced GD&T-literate reviewer on real production drawings, catching real mistakes on real parts, tends to build fluency faster than classroom instruction alone, though the two approaches work best combined rather than as substitutes for each other.

Standards and Manuals Worth Bookmarking

For GD&T rules, start with ASME Y14.5-2018 (R2024). For drawing layout and practices, use ASME Y14.100 alongside Y14.1. For MBD, reference the ASME Y14 series directly. For real-world templates, download NASA’s drawing standards manual and keep it next to your CAD workstation.

If your work touches structural or facility-level design approvals, it’s worth understanding how industrial platform design approval requirements get documented outside the pure mechanical drafting world too, since the underlying logic of traceable, standardized documentation carries across disciplines.

Ready to see how these standards translate into a completed, inspected part? Machining Technologies LLC builds production workflows around exactly the ASME Y14.5 and Y14.100 practices covered here, running Hydromat, CNC, and Wire EDM production against tight-tolerance drawings for aerospace, defense, and firearms clients. Explore how contract machining can cut production timelines for OEMs who need drawings turned into parts without the standards getting lost in translation.

An Editorial Take on Standards, Checklists, and Shop Reality

The conventional advice on engineering drawing standards treats them as a compliance exercise, memorize the symbols, cite the right document number, pass the audit. That framing misses what actually separates a good drafter from a mediocre one: judgment about which tolerance a function genuinely needs, not just fluency in the symbol library.

Most scrapped parts I’d bet on tracing back to standards being applied correctly but thoughtlessly, a tolerance tightened out of habit rather than function, a datum scheme copied from a similar part without checking whether it still made sense. ASME Y14.5 gives you the vocabulary. It doesn’t do your thinking for you.

If you take one thing from this, it’s this: read every drawing you release as if you’re the machinist who has to hold that tolerance at 6 a.m. with a worn tool. Standards prevent ambiguity. They don’t prevent bad decisions dressed up in correct notation. Fix your judgment first, then let the standards do their job.
