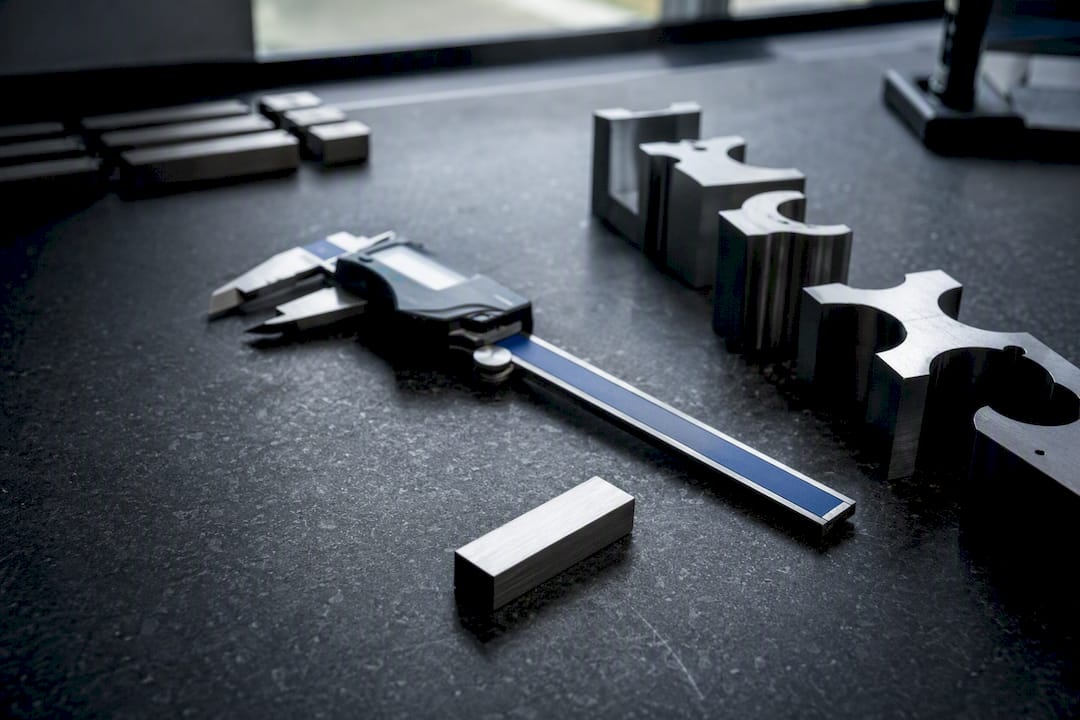

Machined parts and gauges at inspection bench

Process capability index Cpk measures how well a process output fits inside its specification limits, accounting for both the process mean (x̄) and its spread (σwithin). The formula is Cpk = min[(USL − x̄) / 3σwithin, (x̄ − LSL) / 3σwithin], and it only means something if the process is statistically stable first. Most industries treat 1.33 as the minimum acceptable target, 1.67 as a preferred benchmark for critical characteristics, and anything under 1.0 as a stop-ship signal.

TL;DR:

A process with a Cpk above 1.33 reduces defect rates to acceptable levels, but accurate calculation depends on collecting at least 25 subgroups of stable, non-normal data.

In practice, moving from a Cpk of 1.33 to 1.67 can cut expected defects by about 100 times, which is critical for safety-critical industries like aerospace and medical devices.

Cpk reflects short-term capability based on subgroup variance, while Ppk captures long-term process performance, and a significant gap indicates process shifts or drift.

Ensuring process stability through control charts and proper measurement system verification is essential before calculating or interpreting Cpk values.

Continuous monitoring, recalculation after changes, and reporting both Cpk and Ppk are vital for maintaining process capability in high-volume production.

What Process Capability Cpk Actually Measures
How to Calculate Cpk Step by Step
What Cpk Thresholds Mean for Defect Rates
Cpk Vs Ppk: Reading the Gap Between Them
Is Your Data Stable Enough to Calculate Cpk?
Fixing Low Cpk: Centering Versus Variation Reduction
Statistical Caveats Auditors Actually Check
How Capability Monitoring Works on a Production Floor
Where Engineers Get Cpk Wrong
Where to Go for the Formulas and Standards
Sources

What Process Capability Cpk Actually Measures

Cpk answers a narrower question than most engineers assume. It doesn’t ask “is this part good?” It asks “given the current mean and short-term spread, how much room exists before this process produces a defect?” That distinction matters when a process runs dead-center but with wide scatter, or tight but off-target. Cpk captures both failure modes because it takes the minimum of two one-sided indices.

The formal formula, per the NIST/SEMATECH e-Handbook, splits into two components:

CPU (upper capability): (USL − x̄) / 3σwithin, measuring room between the mean and the upper specification limit.
CPL (lower capability): (x̄ − LSL) / 3σwithin, measuring room between the mean and the lower specification limit.
Cpk = min(CPU, CPL), so a process gets graded on its weakest side, not its average performance.

The variable doing the most work here is σwithin, the within-subgroup standard deviation, and it is not the same number you get from dumping every measurement into a spreadsheet’s STDEV function. σwithin isolates short-term, inherent process variation by averaging variability within each subgroup, stripping out shift-to-shift or lot-to-lot drift. Two common estimators handle this: R-bar/d2, which divides the average subgroup range by a control-chart constant (d2) tied to subgroup size, and S-bar/c4, which does the same with subgroup standard deviations and a different constant (c4). NIST’s statistical engineering handbook covers both estimators and their sample-size assumptions in detail. For subgroup sizes of 4 or 5, most quality software defaults to R-bar/d2 because it is simpler to compute by hand and nearly as efficient statistically.

Get σwithin wrong and the whole Cpk value is wrong, no matter how carefully you check the mean.

How to Calculate Cpk Step by Step

Calculating Cpk correctly starts before any math happens. Pull consecutive measurements grouped into subgroups (typically 3 to 5 pieces), collected close together in time so each subgroup reflects one process “snapshot.” Never mix data from different setups, tool changes, or shifts into the same capability study. That contamination inflates σwithin and can also mask real drift that belongs in a Ppk conversation instead.

Collect the data. Gather at least 25 subgroups (100+ individual readings) for a defensible study; fewer than 20 subgroups makes the sigma estimate unstable.
Compute subgroup means and ranges. For each subgroup, calculate the average and the range (max minus min).
Estimate σwithin. Average the subgroup ranges (R-bar) and divide by d2 for the subgroup size used.
Calculate CPU and CPL, then take Cpk as the minimum of the two.

Here’s a worked example. Suppose a machined shaft diameter has USL = 10.050 mm and LSL = 9.950 mm. Twenty-five subgroups of size 5 produce a grand mean (x̄) of 10.002 mm and an average range (R-bar) of 0.024 mm.

Step	Calculation	Result
Estimate σwithin	R-bar / d2	0.024 divided by d2 equals σwithin
CPU	(10.050 − 10.002) / (3 × 0.01032)	0.048 divided by (3 times σwithin)
CPL	(10.002 − 9.950) / (3 × 0.01032)	0.052 divided by (3 times σwithin)
Cpk	min(CPU, CPL)	1.55

That process lands comfortably above 1.33 but slightly short of the 1.67 tier many aerospace suppliers require for critical dimensions.

What Cpk Thresholds Mean for Defect Rates

A Cpk number only becomes useful once you translate it into a defect expectation and a decision. Industry practitioners commonly map thresholds to approximate defects per million opportunities (DPMO), assuming a centered, normal distribution: Cpk of 1.00 corresponds to roughly 2,700 DPMO, 1.33 to about 63 DPMO, 1.67 to about 0.6 DPMO, and 2.00 to about 3.4 DPMO. Those figures assume the process is centered and normally distributed, which real production data often isn’t, so treat them as directional rather than exact.

Cpk 1.33 versus Cpk 1.67: Moving from 1.33 to 1.67 doesn’t just shave off a few defects. It’s roughly a 100x reduction in expected DPMO under the normality assumption, which is why aerospace and medical-device customers push suppliers toward the higher number for safety-critical features.

Practical actions by range:

Cpk below 1.0 — stop and investigate; the process is producing scrap or will soon.
Cpk 1.0 to 1.33 — marginal; acceptable for non-critical characteristics but flag for improvement.
Cpk 1.33 to 1.67 — the common minimum for general manufacturing and automotive suppliers.
Cpk 1.67 and above — expected baseline for safety-critical or regulated characteristics in aerospace, defense, and medical devices.

These thresholds are frequently contractual, not just internal targets. Automotive customers often reference IATF-aligned expectations, aerospace primes may specify Cpk in the purchase order itself, and ASTM’s recent commentary on capability reporting stresses that a bare number without context (sample size, subgrouping method, normality check) can mislead an auditor more than it informs one. A part that hits your internal 1.33 target might still fail a customer’s PPAP submission if their spec calls for 1.67.

Cpk Vs Ppk: Reading the Gap Between Them

Cpk and Ppk look almost identical on paper but answer different questions. Cpk uses σwithin, the short-term, subgroup-based sigma, so it represents what the process is capable of under ideal, momentary conditions. Ppk uses the overall standard deviation calculated from every individual point against the grand mean, capturing long-term variation including shift changes, tool wear, and lot-to-lot differences. The Minitab explanation of this distinction frames Cpk as “process potential” and Ppk as “process performance” over the full study window.

If Cpk and Ppk sit close together, the process behaves consistently over time.
If Ppk is meaningfully lower than Cpk, something is shifting between subgroups: tool wear, material lot changes, or operator-to-operator variation.
A large Cpk/Ppk gap is a diagnostic flag, not just a reporting footnote.

When the gap shows up, the fix isn’t recalculating harder. It’s pulling the control chart and checking for drift patterns, confirming whether raw material lots changed mid-study, and verifying tooling offsets weren’t adjusted between subgroups.

Pro Tip: Report Cpk and Ppk together whenever a customer or auditor asks for capability data. A single number invites the question “compared to what timeframe?” Reporting both up front, as NIST’s own guidance recommends, heads that question off entirely.

Is Your Data Stable Enough to Calculate Cpk?

Cpk math on unstable data produces a number that looks precise and means nothing. Before running any capability calculation, the process needs to demonstrate statistical control on a control chart, not just “look okay” by eye.

Check for out-of-control signals first. Points outside the control limits, seven-point runs above or below the centerline, or clear trends all invalidate a capability study until root-caused.
Match sample size to the stakes. A quick internal check can work with 25 to 30 consecutive measurements, but formal capability evaluations tied to PPAP or customer audits typically expect 100 or more observations across multiple shifts, a threshold NIST and industry sources both point toward for defensible confidence intervals.
Handle non-normal data honestly. If a histogram shows clear skew (common with one-sided characteristics like flatness or roundness), apply a Box-Cox transformation before calculating Cpk, or switch to a nonparametric capability index that doesn’t assume a bell curve.

Skipping the control-chart check is the single most common way engineers generate a misleadingly high Cpk. A tool tracking quality control best practices built around live SPC data catches this before it reaches a capability report.

Fixing Low Cpk: Centering Versus Variation Reduction

The first diagnostic move is comparing Cp (potential capability, ignoring centering) against Cpk (actual capability, including centering). When Cp is meaningfully higher than Cpk, the process has enough spread capacity but is running off-center, and the fastest fix is a set-point or offset adjustment, not a hunt for new equipment. When both Cp and Cpk are low, centering alone won’t save you. The spread itself needs to shrink.

Practical shop-floor levers, roughly in order of speed to implement:

Recentering: adjust machine set points or tooling offsets to move x̄ toward the specification midpoint.
Fixture and workholding checks: loose or worn fixtures widen part-to-part variation independent of the machine’s inherent precision.
Preventive maintenance: worn spindles, backlash, and thermal drift all inflate σwithin over time.
Operator standardization: inconsistent setup or measurement technique between shifts adds variation that has nothing to do with the machine.
Material lot control: raw stock variation (hardness, diameter tolerance from the mill) can dominate σwithin on some characteristics.

Before crediting any fix, run a gauge R&R study. A capability improvement that disappears once you tighten the measurement system was never real. Pro Tip: Confirm every improvement with a fresh control chart and a follow-up capability calculation, not just a lower scrap count. Scrap can drop for reasons that have nothing to do with the process getting more capable. Adjustments to fixturing and workholding often trace back to post-processing consistency issues rather than the primary machining operation itself.

Statistical Caveats Auditors Actually Check

A Cpk value reported without its supporting statistics invites scrutiny. Confidence intervals around Cpk narrow as sample size grows, which is why a study built on 25 subgroups carries far more uncertainty than one built on 100+, even if both produce the same point estimate. NIST’s handbook on process capability provides the standard approximation formulas for this variance.

Use R-bar/d2 or S-bar/c4 consistently, and document which one you used.
Treat n≥25 subgroups as a rough floor for internal checks; n≥100 individual readings for formal PPAP or contractual submissions.
Apply Box-Cox transformations or nonparametric indices for non-normal characteristics rather than forcing a normal-distribution formula onto skewed data.
Software like JMP and Minitab automate these checks and flag non-normality before calculating Cpk, which catches errors that manual spreadsheet math misses.

How Capability Monitoring Works on a Production Floor

Capability numbers stop being academic the moment a customer asks for a PPAP submission on a 20-million-part annual run. Machiningtechllc operates a 70,000 square foot facility in Webster, Massachusetts, running Hydromat systems alongside CNC milling, turning, and wire EDM equipment, and every high-volume program depends on capability data that holds up under a customer audit, not just an internal spreadsheet.

A practical checklist any shop can adapt:

Pull control-chart data continuously, not just before a scheduled capability study.
Flag any out-of-control signal before it reaches a full production lot.
Recalculate Cpk after every tooling change, material lot switch, or preventive maintenance event.
Pair every Cpk figure with its Ppk counterpart when reporting to a customer.
Tie gauge R&R verification to the measurement system before trusting a capability number.
Route capability data directly into PPAP documentation rather than reconstructing it after the fact.

Since 1985, that kind of continuous SPC discipline is what separates a shop quoting tight tolerances from one that can actually hold them across a 20 million part production year. Engineers specifying tolerances upstream should also review how machining tolerances get set in the first place, since a specification limit chosen without process data baked in often guarantees a low Cpk before the first part gets cut.

Where Engineers Get Cpk Wrong

The most common mistake I see isn’t a math error. It’s treating a single Cpk snapshot as a permanent verdict on a process, then getting blindsided three months later when Ppk data (or a customer complaint) reveals the process drifted the entire time. Cpk tells you what the process was capable of in that narrow window. It says nothing about tool wear on week six or a material lot swap on week nine.

The second mistake is gaging. Engineers spend hours refining subgroup sizes and sigma estimators while measuring parts with a gauge that has more variation than the process itself. Run the gauge R&R before you trust any Cpk number that comes out of that measurement system.

A six-point checklist worth pinning above any CMM station:

Confirm the control chart shows stability before calculating anything.
Use consistent subgrouping (same shift, same setup) for every study.
Calculate both Cpk and Ppk, and investigate any meaningful gap.
Verify the measurement system with gauge R&R before trusting the sigma estimate.
Recheck non-normal characteristics with a transformation or nonparametric index.
Recalculate after every meaningful process change, not on a fixed calendar schedule.

Shops that treat capability as a contract deliverable to satisfy once will eventually get burned by a process that quietly drifted between studies. Shops that build these six steps into daily routine, and can point to real production evidence when a customer asks, tend to keep the contracts they already have. Machiningtechllc’s contract machining services build this kind of ongoing SPC verification into every high-volume program rather than treating capability as a one-time checkbox.

— Andrew

Where to Go for the Formulas and Standards

For the formal math and estimator derivations, start with the NIST/SEMATECH e-Handbook and its statistical engineering companion. For software-assisted workflows, JMP’s capability documentation and Minitab’s blog resources cover graphical methods. For audit-context guidance, ASTM’s Cpk versus Ppk clarification is worth bookmarking.
