Ten factors drive nearly every precision CNC machining quote: material, part geometry and complexity, tolerances, order quantity, setup/programming/fixturing (NRE), cycle time, machine capability, surface finish and secondary operations, inspection and quality requirements, and lead time premiums. Get these right in CAD before you send an RFQ, and DFM changes can significantly cut manufacturing costs and reduce lead times.
Here is the ranked list at a glance:
- 1. Material selection and stock form (High impact)
- 2. Part geometry and complexity (High impact)
- 3. Tolerances and dimensional accuracy (High impact)
- 4. Order quantity and batch size (High impact)
- 5. Setup, programming, and fixturing (NRE) (High impact)
- 6. Cycle time and machine hours (High impact)
- 7. Machine type and capability (High impact)
- 8. Surface finish and secondary operations (Medium impact)
- 9. Inspection and quality requirements (Medium–High impact)
- 10. Lead time and rush premiums (Medium impact)
Machiningtechllc has been quoting and producing complex precision parts since 1985, with AS9100-capable inspection and throughput exceeding 20 million parts per year. The sections below explain exactly what moves each driver and what you can do about it.
Table of Contents
- The complete precision machining cost drivers list, explained driver by driver
- Which drivers hit hardest: impact ranking and cost ranges
- How early DFM decisions cut real machining costs
- Pre-quote checklist for engineers and buying teams
- Practical levers to reduce precision machining costs
- Key Takeaways
- The tradeoff most engineers underestimate
- Machiningtechllc: from DFM review to high-volume production
- Useful sources for engineers and buyers
The complete precision machining cost drivers list, explained driver by driver
1. Material selection and stock form
Material is the first line on every quote for a reason. Raw material cost is only part of the story. Machinability matters more. Soft aluminum and brass can be 40–50% cheaper to machine than titanium or superalloys because faster removal rates mean shorter cycle times and dramatically lower tool wear. Stainless steel sits in the middle. Inconel and hardened tool steels sit at the expensive end.
Stock form adds another layer. Billet aluminum is isotropic and machines cleanly. Hot-rolled bar stock may have scale, inconsistent grain, and tighter yield variability that forces slower feeds. Specifying the wrong stock form for a tight-tolerance part can add deburring, facing, and scrap risk before a single feature is cut.
Pro Tip: When function allows, specify 6061-T6 aluminum instead of 7075 for non-structural brackets. The machinability difference alone often drops per-part cost by 20% or more on complex geometries.
2. Part geometry and complexity
Geometry is where most cost surprises hide. Deep pockets exceeding three times the tool diameter, thin walls under 0.060", small internal radii, undercuts, and features on multiple faces all compound cost in the same direction: more passes, more tool changes, more setups, and higher scrap risk.
A part with a 0.030" internal radius forces a 0.060" end mill. That tool deflects, runs slowly, and wears fast. The programmer writes more passes to hold the wall. The machinist may need a second setup to reach the feature. None of that shows up as a line item on the quote, but it is all in the price.
Multi-face features are the other trap. Every time a part needs to be repositioned, you pay for a new setup. Four-sided parts with features on each face can require four separate setups on a 3-axis machine, or a single setup on a 4/5-axis machine at a higher hourly rate. Neither is automatically cheaper. See the complex part manufacturing strategies guide for geometry-specific DFM approaches.
3. Tolerances and dimensional accuracy
Tolerances are one of the highest-leverage cost drivers because they cascade. A ±0.005" bilateral tolerance is achievable on most 3-axis CNC mills without special handling. Tighten that to ±0.001" and you add slower finishing passes, temperature-stabilized fixturing, and CMM verification on every critical feature. Sub-micron requirements carry a 50–100% cost premium above standard tolerances.
The common mistake is applying blanket tight tolerances across an entire drawing when only two or three features actually need them. Every tight callout on a non-functional surface costs money and adds inspection time. Identify your functional datums, apply tight tolerances only there, and explicitly call out “non-critical” on everything else. For aerospace applications, the tolerance design and datum strategy guide covers this in detail.
4. Order quantity and batch size
Quantity is the most powerful lever for per-part cost, and it works through amortization. Programming, fixturing, first-article inspection, and tool procurement are largely fixed costs. Spread them over 10 parts and the per-part NRE is painful. Spread them over 10,000 parts and they nearly disappear.
Prototype or single-piece parts routinely incur $500 to $5,000 in setup and fixturing charges that the buyer absorbs entirely. That same fixture cost amortized over a production run of 500 pieces adds pennies per part. If you are in the early design phase, plan your volume bands before you quote. Even committing to a two-run contract can move you into a lower per-part tier.
5. Setup, programming, and fixturing (NRE)
NRE (non-recurring engineering) is often the largest single cost component for low-volume work. CAM programming, toolpath simulation, fixture design and fabrication, and first-article verification are all paid once per job revision. A complex 5-axis part with tight tolerances might carry $2,000–$8,000 in NRE before a single production part ships.
The implication for buyers: design freezes matter. Every drawing revision after programming starts resets some or all of that NRE. Consolidating features to reduce the number of setups directly reduces fixturing cost. Standard modular fixturing, where geometry allows, can cut fixture fabrication time significantly compared to custom hard tooling.
Pro Tip: Ask your supplier to separate NRE from per-part cost on the quote. It tells you the true amortization curve and shows exactly what you save by increasing volume or committing to a multi-run agreement.
6. Cycle time and machine hours
Cycle time is the core cost engine. Material removal rate, number of tool changes, finishing passes, and repositioning all accumulate into machine hours, and machine hours multiplied by shop rate equals per-part cost. U.S. CNC shop rates run roughly $35 to $200+ per hour depending on machine type, capability, and region. A part that takes 45 minutes on a 3-axis mill at $75/hour costs $56.25 in machine time alone, before material, NRE, or inspection.
The geometry and material sections above both feed directly into cycle time. Hard materials slow feed rates. Deep pockets require multiple Z-level passes. Thin walls limit depth of cut. Each of these multiplies machine hours. Reducing cycle time through DFM is almost always more effective than shopping for a lower hourly rate.

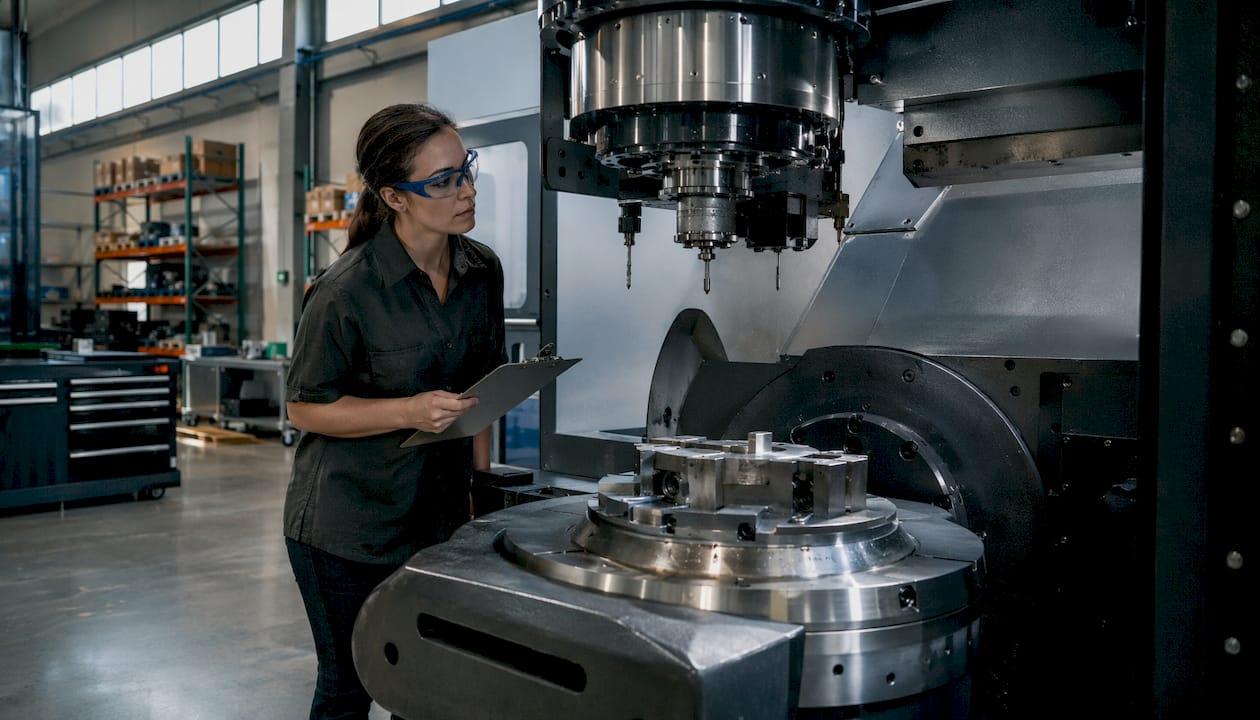

7. Machine type and capability
Not every part can be made on a 3-axis mill. When geometry forces multi-axis work, the cost jump is significant. Five-axis machining can cost 300–600% more than 3-axis alternatives when the part design requires it. That premium reflects higher machine depreciation, more complex programming, and longer setup times.
The subtler point: a lower hourly rate on the wrong machine costs more overall. A 3-axis shop quoting a part that genuinely needs 5-axis work will add setups, fixtures, and inspection steps to compensate. The total cost often exceeds what a 5-axis shop would charge. Always evaluate the true cost for the equipment your design actually needs, not the headline hourly rate.
Machiningtechllc runs Hydromat rotary transfer systems alongside CNC milling, turning, and wire EDM. For high-volume turned and milled components, Hydromat machining produces parts in a single pass through multiple stations, which collapses cycle time and eliminates inter-operation handling.
8. Surface finish and secondary operations
Ra callouts below 32 µin (0.8 µm) require dedicated finishing passes that add cycle time. Below 16 µin, you are typically looking at grinding or lapping. Post-machining operations, including anodizing, hard chrome plating, heat treatment, bead blasting, and black oxide, each add a separate cost line, lead time, and handling step.
The key question is whether the finish callout is functional or cosmetic. A bore that seals against an O-ring needs a specific Ra. An external housing face that will be painted does not. Separating functional from cosmetic finish requirements on the drawing prevents the shop from applying expensive finishing operations uniformly.
9. Inspection and quality requirements
Inspection is where aerospace and defense programs diverge sharply from commercial work. AS9100 and NADCAP requirements add 8–15% or more to overall part cost for aerospace work, driven by calibration, traceability documentation, and more frequent dimensional checks. Switching from AQL sampling to 100% inspection on a complex part can multiply inspection labor several times over.
Profile tolerances are particularly expensive to verify. Surface scanning for profile callouts can take 200–800% longer than point measurements on a CMM. If a profile tolerance is not functionally required, a simpler position or size callout will cost less to inspect and document. For buyers who need certified parts, Machiningtechllc’s quality and throughput capabilities cover AS9100-ready inspection.
10. Lead time and rush premiums
Rush orders cost money in two ways: overtime labor and opportunity cost to the shop. When a supplier reprioritizes your job, another customer’s job waits. That disruption carries a premium, typically 15–30% above standard lead time pricing, though the exact figure varies by shop and capacity.
The practical fix is simple: engage your supplier early. A part quoted at standard lead time with four weeks of runway costs less than the same part quoted on a two-week rush. For programs with recurring demand, blanket purchase orders that lock in capacity in advance eliminate rush premiums entirely.
Which drivers hit hardest: impact ranking and cost ranges
The table below maps each driver to its typical impact level and cost-swing range. These ranges reflect industry data and are intended as planning benchmarks, not guarantees for any specific part.
| Cost Driver | Impact Level | Typical Cost Range / Multiplier | Primary Mechanism |
|---|---|---|---|
| Machine type (3-axis vs 5-axis) | High | 300–600% premium for 5-axis | Machine depreciation, programming complexity |
| Tolerances (standard vs sub-micron) | High | 50–100%+ premium | Finishing passes, CMM inspection, temperature control |
| Material machinability | High | 40–50% swing (Al/brass vs Ti/superalloys) | Feed rates, tool wear, cycle time |
| Order quantity / NRE amortization | High | $500–$5,000 NRE on single-piece parts | Fixed setup cost spread over fewer units |
| Cycle time (geometry-driven) | High | Dominates per-part cost at all volumes | Machine hours × shop rate ($35–$200+/hr) |
| Part geometry and complexity | High | Multiplies setups, tool changes, scrap risk | Deep pockets, thin walls, multi-face features |
| Inspection and certification | Medium–High | 8–15%+ for AS9100/NADCAP work | Documentation, calibration, 100% CMM |
| Surface finish and secondary ops | Medium | Varies by operation; grinding adds significant time | Finishing passes, post-process handling |
| Lead time / rush premiums | Medium | Typically 15–30% above standard | Overtime, schedule disruption |
| Setup and fixturing (NRE) | High at low volume | Largest single cost at prototype quantities | Fixed cost amortized over run size |
One important caution: these drivers interact. Tight geometry forces higher-axis work, which increases cycle time and programming complexity. Tight tolerances increase both cycle time and inspection cost simultaneously. A part that scores “High” on three or four drivers at once does not add those premiums linearly. The compounding effect is why hourly rate alone is a poor predictor of final part cost.
How early DFM decisions cut real machining costs
Consider a representative aerospace bracket: initial design called for 0.030" internal corner radii throughout, ±0.001" tolerances on all 47 dimensions, and six features on four separate faces requiring four setups on a 3-axis machine.
Three DFM changes addressed the main cost drivers:
- Internal radii increased to 0.062" to match a standard end mill diameter, eliminating the need for small-tool finishing passes.
- Tolerances relaxed to ±0.005" on 38 of 47 dimensions identified as non-functional, with ±0.001" retained only on the two bore locations that mate with bearings.
- Features reoriented so all six could be reached in two setups instead of four, avoiding a 5-axis machine entirely.
The result was consistent with what DFM implementation data shows across the industry:
The caveat worth stating plainly: some designs genuinely require tight tolerances and complex geometry. A turbine blade cannot have its profile tolerance relaxed. A firearm bolt carrier group has functional fits that cannot be compromised. In those cases, the right answer is to accept the premium and select a supplier with the capability to hold it consistently, not to chase a lower quote from a shop that will struggle with the part.
Pre-quote checklist for engineers and buying teams
Run through this before you send drawings to any supplier. It prevents the most common quoting surprises and often lowers the first quote you receive.
CAD and geometry review:
- Verify all internal radii are at least 1/3 of pocket depth (ideally match a standard end mill diameter)
- Confirm no wall thickness falls below 0.060" for metals unless functionally required
- Check that features on multiple faces can be reached in the fewest possible setups
- Flag any undercuts and confirm they are functionally necessary
Drawing and tolerancing:
- Identify critical vs non-critical dimensions explicitly on the drawing
- Apply tight tolerances (±0.001" or tighter) only to functional mating features
- Include surface finish callouts on all surfaces; do not leave Ra unspecified
- Specify datum reference frames clearly to avoid interpretation errors
Material and stock:
- Specify material grade and temper (e.g., 6061-T6, not just “aluminum”)
- Note acceptable stock forms (bar, plate, billet) if substitution is allowed
- Flag any material certifications required (cert to heat/lot, DFARS compliance)
Volume and procurement:
- State expected annual volume and prototype quantity separately
- Indicate whether a blanket order or multi-run commitment is possible
- Specify acceptable lead time for standard runs vs expedited
Inspection and quality:
- State required inspection level: AQL sampling, first-article only, or 100%
- List required certifications: AS9100, NADCAP, ISO 9001, or none
- Include any customer-specific quality clauses or PPAP requirements
Pro Tip: Providing a representative sample part or a completed FAIR from a previous supplier gives the quoting shop real dimensional data to work from. It eliminates the risk buffer shops add when they are quoting blind, and it often drops the first quote by 10–15%.
For a deeper cost-model framework, the machining cost estimation guide walks through factor-by-factor worksheets useful for internal budgeting before RFQ.
Practical levers to reduce precision machining costs
Immediate DFM moves in CAD
The fastest wins come from geometry changes that reduce cycle time and setups without touching function:
- Increase corner radii to match standard end mill sizes (0.031", 0.047", 0.062", 0.125"). Each step up eliminates a specialty tool and reduces finishing passes.
- Consolidate features onto one face wherever function allows. Two setups instead of four cuts fixturing cost roughly in half.
- Standardize hole diameters to common drill sizes. Non-standard hole sizes require interpolated milling, which takes three to five times longer than a drill cycle.
- Allow larger chamfers and fillets on non-mating surfaces. They reduce stress concentrations and eliminate sharp-corner finishing passes.
Procurement levers
Volume commitment is the most underused cost lever available to buyers. Consolidating annual demand into a blanket purchase order locks in capacity, eliminates repeat NRE charges, and often qualifies for volume pricing tiers. Accepting a four-week standard lead time instead of two weeks removes rush premiums. Specifying AQL sampling instead of 100% inspection on non-safety-critical parts can reduce inspection cost by 30–50% on high-volume runs.
Centralized tool management at the supplier level also affects your cost. Suppliers who use automated tooling management systems reduce downtime from tool changes and procurement delays, which translates into more predictable cycle times and lower overhead per part.
Process and design levers
- Choose materials with better machinability when the application allows. Switching from 303 stainless to 6061 aluminum on a non-structural bracket can cut machining time by 60% or more.
- Redesign to avoid 5-axis work unless the geometry genuinely requires it. Reorienting a feature by 15 degrees in CAD can eliminate a 5-axis requirement and drop cost by 300–600%.
- Plan for combined operations on turn-mill or Hydromat equipment for high-volume rotational parts. A single-pass Hydromat cycle replaces multiple sequential operations and eliminates inter-operation handling.
At prototype volumes, DFM changes deliver the biggest savings per dollar of engineering time. At production volumes above a few hundred pieces, procurement levers (blanket orders, lead time flexibility, inspection level) tend to dominate. At very high volumes, process selection (Hydromat vs conventional turning) becomes the primary cost driver.
Key Takeaways
Material, geometry, tolerances, and machine type are the four highest-impact cost drivers in precision CNC machining, and addressing them in CAD before RFQ consistently delivers the largest cost reductions.
| Point | Details |
|---|---|
| DFM saves the most money | Early design changes can cut manufacturing costs by 15–40% and lead times by 25–60%. |
| Tolerances cascade into inspection cost | Sub-micron tolerances carry a 50–100% cost premium; apply tight callouts only to functional features. |
| NRE dominates at low volume | Single-piece and prototype parts absorb $500–$5,000 in setup and fixturing before production begins. |
| Machine type is a high-leverage choice | Five-axis operations cost 300–600% more than 3-axis; redesign to avoid them unless geometry requires it. |
| Machiningtechllc for complex, high-volume work | AS9100-capable inspection, Hydromat systems, and 20M+ parts/year throughput support prototype-to-production transitions. |
The tradeoff most engineers underestimate
There is a version of cost optimization that goes too far. Relax every tolerance, simplify every feature, choose the cheapest material, and you will get a low quote for a part that does not work. The real skill is knowing which cost drivers to fight and which to accept.
Tolerances are the clearest example. Blanket tight tolerances on a drawing are almost always a mistake, but so is reflexively loosening every callout to save money. A bearing bore that is 0.0005" out of round will fail. A housing wall that is 0.010" thinner than designed might not. The engineer’s job is to know the difference, and that requires understanding the function of every feature before touching the drawing.
The same logic applies to machine selection. Five-axis machining is expensive, and the instinct to avoid it is usually right. But a part that genuinely needs 5-axis work, machined on a 3-axis machine with four setups and hand blending, will have worse dimensional consistency and higher scrap rates. The total program cost, including rework and rejects, often exceeds what the 5-axis quote would have been.
Engaging a capable supplier early in the design phase changes this calculus. A shop with real DFM experience will tell you which features are driving cost and whether the function justifies it. That conversation, before the drawing is released, is worth more than any checklist.
Machiningtechllc: from DFM review to high-volume production
For OEMs and engineering teams that need more than a quote, Machiningtechllc offers DFM review alongside production quoting. Operating from a 70,000 sq ft facility in Webster, Massachusetts, with Hydromat rotary transfer systems, CNC milling and turning, and wire EDM, the shop handles prototype quantities through high-volume contract machining runs exceeding 20 million parts per year.
Relevant capabilities for engineers working through the cost drivers above:
- DFM consultation during design phase to identify geometry and tolerance changes before programming begins
- Prototype quoting with clear NRE line items so you understand the amortization curve
- Hydromat high-volume machining for rotational and multi-feature parts requiring combined operations
- AS9100-capable inspection including CMM verification, first-article inspection reports, and traceability documentation
- Specialty firearm component manufacturing with tight-tolerance bore and fit requirements
To get a quote or request a DFM review, submit your drawings and target volumes through the subcontract machining services page. Include your expected annual volume and any certification requirements so the team can return an accurate, fully loaded quote.
